• Pergam LMB2B3E-SBA Laser Methane Smart Detector

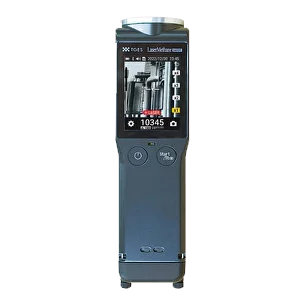

Pergam hand held detector
Features of the new Laser Methane Smart Detector

The New Laser Methane Smart gas leak detector with touch-screen and camera comes in a heavy-duty case, complete with 2 sets (4 per set) of rechargeable AA batteries, battery charger, nylon strap and Quick User Guide. This unit is Bluetooth-enabled and contains one SD card for data storage/transfer, it can also output data to the cloud server. It is available as a non-Bluetooth enabled handset.

  • Bluetooth communication
  • Realtime data display and measuring
  • Large 2.7" color display
  • High definition digital camera
  • GPS location tracking
  • Data storage for traceability
  • Ability to capture and store images
  • Upload data to a cloud server
  • Self-check and automatic calibration on start-up

Convenient for regular inspections.

The New Laser Methane Smart gas leak detector with Bluetooth, measurement principle of this equipment uses the characteristics of methane, which absorbs the laser beam (infrared rays) of a specific wavelength (infrared absorption technology). The laser beam directed at targets such as gas piping, the ground, overhead pipe, etc., will reflect back a diffused beam from the target. The device will receive the reflected beam and will measure the absorptivity of the beam, which will then be calculated into methane column density (ppm-m).

  • Ideal for Outdoor Use
  • Intrinsically Safe
  • Compact Design, Fits in your Pocket
  • High Durability
  • Connection with Android & IOS Devices
  • Handheld Grip

Additional technology features:

  • Target Gas: Methane (CH4) & methane-containing gases
  • Detection Limits: 1 ~ 50,000 ppm × m
  • Accuracy of Detection: ± 10 % (100~1000 ppmxm)
  • Detection Response Time: 0.1 second
  • Detection Distance: 0 ~ 98 ft (0 - 30m)
  • Laser Wavelength: 0.067 mil (1653 nm)
  • Guide Beam Laser: Green laser (Class 3R)
  • Output Power: 5mW (Class 3R) Below
  • Measuring Laser Beam: Green laser
  • Output Power: 10mW (Class 1) Below
  • Laser Wavelength: 0.026 mil (650 nm)
  • Explosion Safety Device: II 2G Ex ib op-pr/op-is IIA T1
  • Explosion Safety Battery Unit: II 2G Ex ib IIA T1
  • Electromagnetic Compatibility: CE compatible according to EMC directive (EN61326)
  • Operating Temperature: 1.4 to 122° F (-17 to +50 °C)
  • Operating Humidity: 30 — 90 %RH (non-condensing)
  • Overall Dimensions (wxdxh): 2.2 × 7.9 × 2.1 in (70 × 179 × 42 mm)
  • Weight: 17.6 oz (500 g) or less, including battery
  • Power Supply: Battery pack — Panasonic eneloop (AA Ni-MH Battery) rechargeable
  • Battery Life per Charge: 2.5 hours or more (at 77 °F / 25 °C)
  • Bluetooth Interface: Model SA3C32A-BE only

Eneloop High Capacity Batteries and Panasonic Super Advanced Charger/Pro charger can also be sourced on the Internet for customer convenience. The batteries and charger listed above are specified by the manufacturer. Substitution of similar batteries and charger will not provide the same use time, quick charging time and may result in batteries/charger overheating. Any damage to the Laser Methane Smart from using non-specified batteries may void warranty.

OTECH LLC. is a licensed and insured company that is focused on operating productively and efficiently to meet our customer's goals and objectives.

Contact O-tech
For up-to-date pricing on the LMB2B3E-SBA Smart Gas Leak Detector.

Laser Methane Smart Detector FAQs

Yes. Connection with Android & IOS Devices

No, each device is designed to detect a specific gas. This provides a 100% probability of leak detection of methane and not any other gas.

Laser radiation is completely safe, it corresponds to class 1.

Yes, the instrument works in all weather conditions.

No, there is no impact.

No. The detector has a self-check and automatic calibration on start-up, thus ensuring an accurate survey.

It works remotely. There is no direct contact with the hazardous environment.

No, since this device modification does not provide for recording or transfer of inspection data.
