Features of the new Laser Methane mini
The LMm (Laser Methane mini) is designed to remotely detect methane, as well as other gas mixtures containing methane (natural gas or similar gases). It allows to quickly and safely find the point of gas leakage by pointing the laser beam at the studied area.
- Bluetooth communication
- Realtime data display and measuring
- GPS location tracking
- Data storage for traceability
- Ability to capture and store images
- Email data transfer
Convenient for regular inspections.
The LMm (Laser Methane mini), measurement principle of this equipment uses the characteristics of methane, which absorbs the laser beam (infrared rays) of a specific wavelength (infrared absorption technology). The laser beam directed at targets such as gas piping, the ground, overhead pipe, etc., will reflect back a diffused beam from the target. The device will receive the reflected beam and will measure the absorptivity of the beam, which will then be calculated into methane column density (ppm-m).
- Ideal for Outdoor Use
- Intrinsically Safe

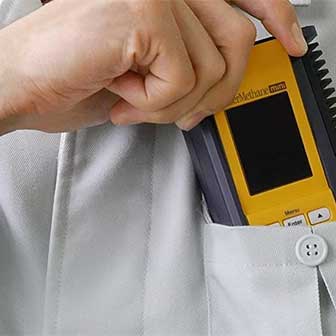

- Compact Design, Fits in your Pocket
- High Durability
- Connection with Android Devices

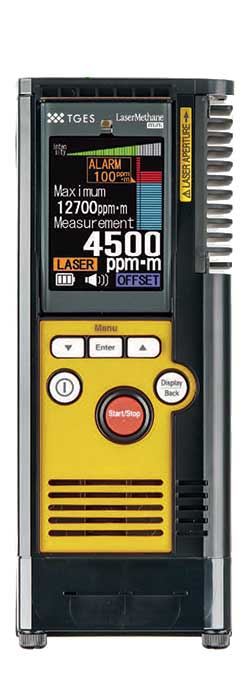

- Handheld Grip
Additional technology features:
- Target Gas: Methane (CH4) & methane-containing gases
- Detection Limits: 1 ~ 50,000 ppm × m
- Accuracy of Detection: ± 10 % (100~1000 ppmxm)
- Detection Response Time: 0.1 second
- Detection Distance: 1.64 ft ~ 98 ft (0.5 - 30m)
- Laser Wavelength: 0.067 mil (1653 nm)
- Output Power: 1 mW (Class 2) or less
- Guide Beam Laser: Green laser (Class 3R: ≥ 5 mW)
- Laser Wavelength: 0.026 mil (650 nm)
- Explosion Safety Device: II 2G Ex ib op-pr/op-is IIA T1
- Explosion Safety Battery Unit: II 2G Ex ib IIA T1
- Electromagnetic Compatibility: CE compatible according to EMC directive (EN61326)
- Operating Temperature: 1.4 to 122° F (-17 to +50 °C)
- Operating Humidity: 30 — 90 %RH (non-condensing)
- Overall Dimensions (wxdxh): 2.75 × 7 × 1.65 in (70 × 179 × 42 mm)
- Weight: 1.37 lb (600 g) or less, including battery
- Power Supply: Battery pack — Nickel metal hydride, rechargeable
- Battery Life per Charge: 5 hours or more (at 77 °F / 25 °C)
- Bluetooth Interface: Model SA3C32A-BE only
OTECH LLC. is a licensed and insured company that is focused on operating productively and efficiently to meet our customer's goals and objectives.
Contact O-tech For up-to-date pricing on the LMm BE Mini Laser Methane Detector.
LMm BE Mini Laser Methane Detector FAQs
Not yet. The iOS app release is scheduled for 2020.
No, each device is designed to detect a specific gas. This provides a 100% probability of leak detection of methane and not any other gas.
Laser radiation is completely safe, it corresponds to class 1.
Yes, the instrument works in all weather conditions.
No, there is no impact.
No. The detector contains a reference container with methane inside and calibration is performed at each start-up and during operation.
It works remotely. There is no direct contact with the hazardous environment.
No, since this device modification does not provide for recording or transfer of inspection data. The quadcopter version also has an increased detection range.
