Features of the Distran Ultrasonic Leak Detector
Speed up inspection Inspect your plant 10 times faster and instantly assess leak severity.

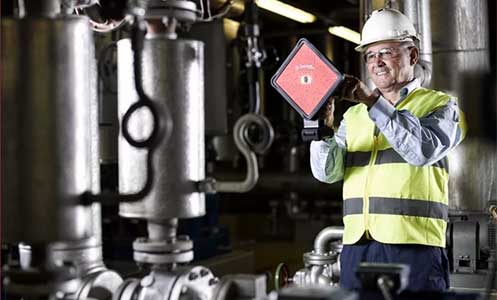

Keep workers safe Detect leaks from a safe distance of up to 50m and reduce your exposure time to hazardous substances.
Increase reliability Don’t miss any leak in your plant and ensure proper repair through effective reporting.
Reduce downtime Perform inspection during normal operation without scaffoldings and save money right away.
Distran develops the world first ultrasonic cameras able to pinpoint leaks of any gas, air and vacuum. Leaks can be spotted from a safe distance, up to 50m away.

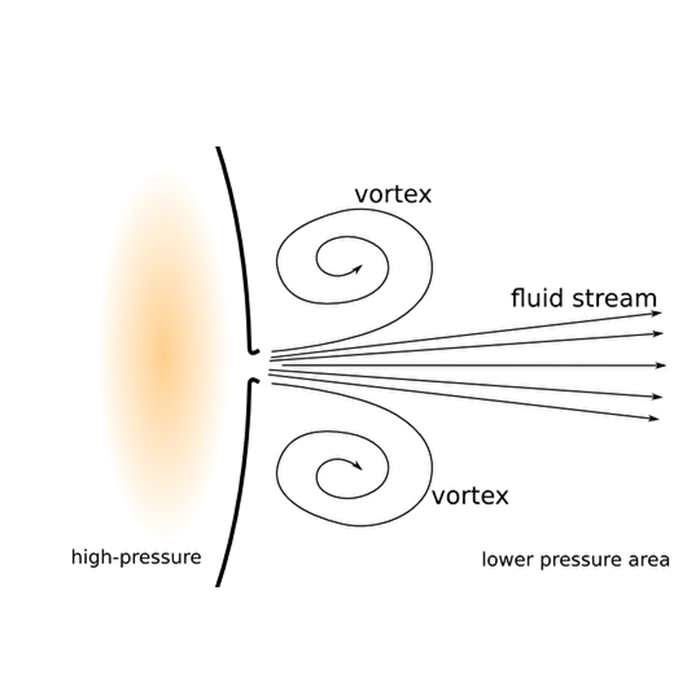

Ultrasounds: sounds that matter Many processes create ultrasounds, such as gas leaks, partial discharges or mechanical defects. Ultrasounds are often the first indication that an element is starting to fail, well before heat/infrared emissions (if any).

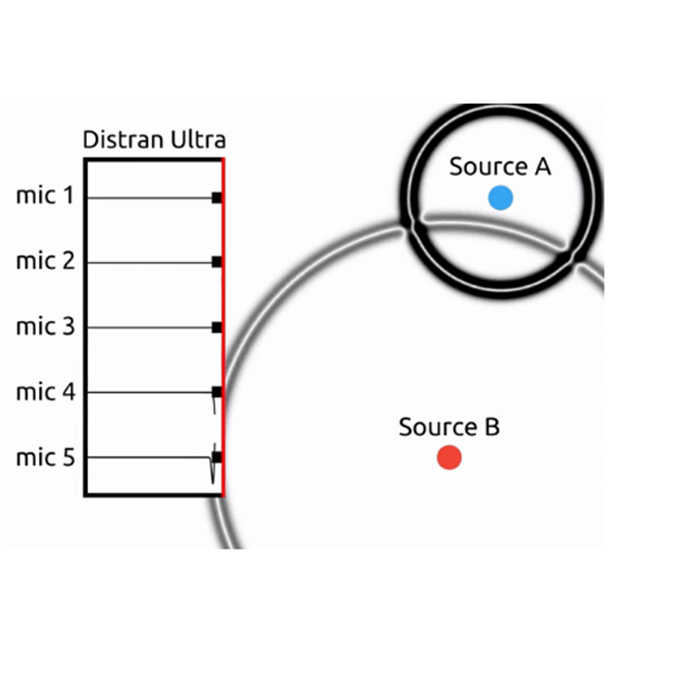

From sounds to images: The surface of Ultra Pro is composed of dozens of sensors that are listening to the sound field. When an ultrasound wave hits the surface, the different sensors detect it at different times. These differences are used to locate the ultrasound sources and represent them as a picture. Ultra Pro takes into account an unlimited number of simultaneous sources.
Blazing fast ultrasonic imaging: In a dozen of milliseconds, Ultra Pro is able to output an acoustic picture. This allows you to locate ultrasounds in real-time and catch the fastest events. Frequency filtering allows you to discard sound sources that do not match the characteristics of a leak, resulting in selective detection.
Additional technology features:
- HD Camera
- 124 high-sensitivity microphones
- Powerful lighting
- Real time display using "Touch Screen Display"
- Suitable for regular inspections of gas distribution stations
Specifications:
- Gas leaks detected: All compressed gases incl. air and vacuum
- Detection range: Quiet environment: 2 L/h, Typ. industrial env.: 10 L/h
- Minimal Δ pressure: 50 mbar (0.7psi)
- Working distance: From 12in to 164 ft (30cm to 50m), Typical: 3-20 ft (1-6m)
- Weight: 3.1 lb (1,4 kg)
- Accuracy: <1°
- Autonomy: 2.5 h
- Integrated lighting: 1400 lumens
- Data export: Audalytics or mass storage
- Output format: JPEG and AVI
- Wireless: Wi-Fi and GPS
