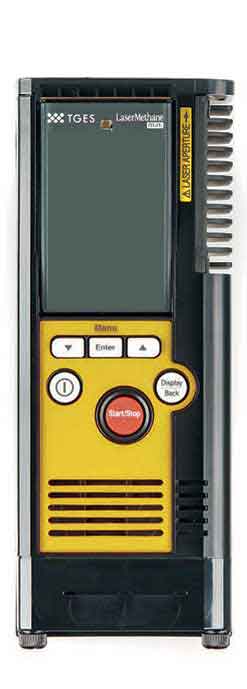

Features of the LMC Mini Laser Methane Detector
A new era in portable methane detection has arrived. The UAV (Drone) mounted Laser Methane mini (LMC) offers users the ability to detect methane remotely.
- Bluetooth communication
- Realtime data display and measuring
- GPS location tracking
- Data storage for traceability
- Ability to capture and store images
- Email data transfer

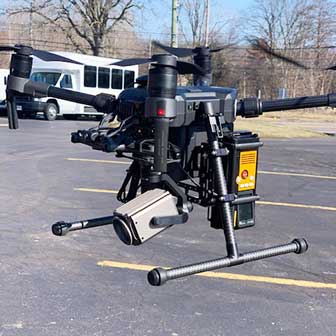

Launching a drone with a methane detector installed on it does not require long preparation. The simplest LMC modifications can be prepared for launch in seven minutes. This allows for unscheduled and emergency inspections. LMC detectors allow inspection of small gas transmission or gas distribution facilities independently, without the involvement of third-party specialists from service companies. LMC mini is a simple solution for short-term aerial inspections of gas infrastructure that can also be used as a hand-held device.
Additional technology features:
- Can be installed on any drone
- Records inspection data in the device memory
- Detection distance up to 98 feet (30 meters)
- Built-in GPS receiver for accurate leak location
- Suitable for regular inspections of gas distribution stations
- Maximum detection range: up to 98 feet (30 meters)
- Measurement range: 1 ~ 50,000 ppm × m
- Threshold sensitivity at 98 feet (30 m): 125 ppm×m
- Real-time data transmission: No
- Writing data to device memory: Yes
- Programmable flight route: No
- Maximum drone speed during operation: 19 mph (30 km/h)
- Built-in GPS receiver: Yes
- Laser wavelength: 0.065 mil (1.65 μm) (safe for humans)
- Operating temperature: 1.4 ... 122 °F (-17 ... +50 °C)
- Units: ppm × m / % vol × m / % LEL × m
- Operating temperature: 1.4 °F ~ 122 °F
- Power supply: built-in battery
- External unit dimensions: 2.76 x 7.04 x 1.61 in (70 × 179 × 42 mm)
- Detector weight: 1.17 lb (0.53 kg)
OTECH LLC. is a licensed and insured company that is focused on operating productively and efficiently to meet our customer's goals and objectives.
Contact O-tech
For up-to-date pricing on the LMC Mini Laser Methane Detector.
LMC Mini Laser Methane Detector FAQs
No, each device is designed to detect a specific gas. This provides a 100% probability of leak detection of methane and not any other gas.
Laser radiation is completely safe, it corresponds to class 1.
Yes. It is an active device, it emits at a certain narrow wavelength, so it does not need additional signal sources.
No, there is no impact.
No. The detector contains a reference container with methane inside and calibration is performed at each start-up and during operation.
The detector does not need to be verified because it is not a measuring tool.
It works remotely. There is no direct contact with the hazardous environment.
Yes, because glass transmits the near infrared radiation well.
Our company specializes in methane detectors, but at your request we can supply a fully ready-to-use complex. Due to our partnership with UAV manufacturers, we can fully integrate the detector into the UAV design.
